Are you wondering if the INOX HOME manifold
is the right choice for your installation?

Let’s take a closer look and see what you gain:

AISI 316L Stainless Steel – An investment for generations

This is no ordinary steel. FIBO INOX HOME bodies are made of 1.4404 grade (AISI 316L) with added molybdenum.

It is the same material used in the pharmaceutical industry and for the production of surgical tools.

  • Resistance: The addition of molybdenum makes the manifold bar completely resistant to aggressive water environments and pitting corrosion.
  • Mirror Finish (Standard PN-EN 10357): The interior of the pipe is as smooth as a glass surface. Water flows without resistance (internal diameter is 32mm), and bacteria or deposits have nothing to cling to.
  • Solid 1.5 mm Wall: This is a "solid piece of material". For comparison – industrial water tanks the size of a house have walls only 1-2 mm thicker.

Patented valve technology – No more seized valve heads

We designed this element from scratch, eliminating the greatest drawback of traditional brass manifolds: seized and damaged valves.

  • "No-Thread" System (No threads in the water)
    Unlike brass, there are no threads or nooks in our water space. Limescale has nowhere to accumulate, so the valve always operates smoothly whenever needed.
  • Hygienic 360° Flow
    The centrally placed stem is washed by water from all sides. No dead zones means no bacterial growth in your drinking water installation.
  • Maximum flow:
    When opened, the valve head rises to its maximum height, and its aerodynamic shape does not restrict the flow. Water reaches the faucet quickly and under full pressure.

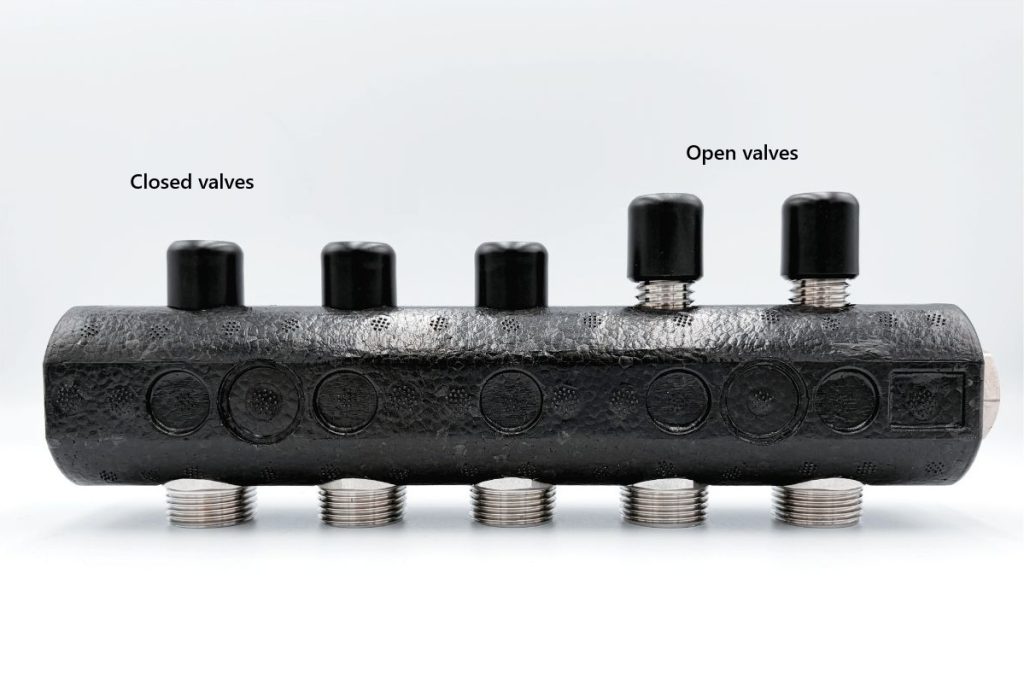

  • Full control (Opening indicator):
    The black, ergonomic knob changes its position (it extends). Just one glance is enough to know which section is open and which is closed.

Universal Standard –
Eurokonus (3/4" x 18)

  • Full Compatibility:
    The use of normalized threads guarantees that the manifold will connect with most fitting systems available on the market.
  • Optimal 45mm Section Spacing:
    Provides freedom and ease of installation.
  • Capacity Matching (PEX 16/20):
    You can easily connect pipes of different diameters. Use PEX 16 mm for standard points (e.g., washbasin) or PEX 20 mm where higher flow is needed (e.g., rain shower).
  • Versatile Sealing:
    Our sockets are adapted to the two most popular sealing standards:
    -O-ring (Eurokonus type)
    -Flat seal (so-called union connector)

Safety, durability, and performance in numbers:

Temperature
Max 110°C:

High thermal resistance provides a wide safety margin above standard operating temperatures of the installation (usually 40-60°C).

Pressure
16 Bar:

The construction is adapted to high loads. Mains water pressure is usually 3-6 bar. Every single unit is subjected to rigorous pressure tests, significantly exceeding the maximum pressure of 16 bar.

Flow Kv
4.22 m3/h:

High Kv (≈70 l/min) guarantees stable supply even to the most demanding tap-off points, such as rain showers (approx. 30 l/min), without pressure drops. Flow for standard appliances is 6-15 l/min.

Impact of the INOX HOME system on energy efficiency and installation aesthetics

Energy savings:
You save, above all, by not losing water temperature during its transfer.

  • Natural barrier: Stainless steel itself is an excellent thermal insulator. Unlike brass, it keeps the heat inside the pipe.
  • EPP Insulation: We go a step further. We offer a dedicated housing made of EPP material with an outstanding thermal conductivity coefficient (λ = 0.030 W/mK).
  • For hot water: The water in the faucet gets hot faster, and you pay less for heating it.
  • For cold water: The insulation acts as an anti-condensation shield – it eliminates the "sweating" effect (condensation of water vapor) on the surface of the manifold bar. No more moisture in the cabinet.

Order and Clarity:

No more guessing which pipe leads to the kitchen and which to the bathroom.

  • Color-coded caps with icons: Both the insulation and the valve knobs feature special sockets for color-coded caps with icons.
  • Instant identification: This simple solution introduces order and clarity to your installation. Every homeowner and plumber will immediately know which valve corresponds to a specific tap-off point.

Quickly and easily select and price your hot and cold domestic water installation based on a stainless steel manifold system.

Go to the configurator
